Modern electronics depend on the seamless integration of components, materials, and manufacturing processes. At the core of this integration lies the Printed Circuit Board Assembly (PCBA)—the critical step that transforms a bare PCB into a functional, intelligent device.
Equally important is the base material used in the PCB. Among various substrate materials, FR4 (Flame Retardant 4) has become the industry standard, especially for consumer, industrial, and communication electronics. One of FR4’s most important properties is its dielectric constant (Dk), which plays a key role in high-frequency signal behavior.
This article explores the fundamentals of PCBA, the significance of FR4 as a base material, and why understanding its dielectric constant is essential for engineers and designers.
What is PCBA (Printed Circuit Board Assembly)?
PCBA refers to the entire process of mounting and soldering components onto a bare PCB, making it ready to function in electronic systems. It’s the backbone of every electronic product, from smartphones to satellites.
PCBA Process Steps:
- Solder Paste Application – Paste is applied to the pads on the PCB.
- Pick and Place – Surface-mount components are positioned onto the solder paste.
- Reflow Soldering – The board is heated to melt the solder, bonding components in place.
- Inspection (AOI/X-ray) – Automated Optical Inspection and X-ray are used for quality checks.
- THT Insertion (if any) – Through-hole components are inserted and wave soldered.
- Final Testing – Functional and in-circuit testing ensure the assembled board works as intended.
Applications of PCBA:
- Consumer electronics (smartphones, tablets, TVs)
- Industrial automation
- Automotive electronics (ADAS, infotainment)
- Aerospace and defense systems
- Medical devices (diagnostic, monitoring, wearable tech)
Understanding PCB Materials: The Role of FR4
A Printed Circuit Board is made of multiple layers: copper, solder mask, silkscreen, and—most importantly—the substrate or core material. The core affects signal speed, heat resistance, durability, and cost.
🔧 What is FR4?
FR4 is a glass-reinforced epoxy laminate that is:
- Flame-retardant (UL94 V-0 rated)
- Mechanically strong
- Electrically insulating
- Thermally stable (up to ~130°C Tg standard; high-Tg versions available)
What is Dielectric Constant (Dk or εr)?
The dielectric constant represents a material’s ability to store electrical energy in an electric field. It is a dimensionless number that directly affects:
- Signal propagation speed (higher Dk = slower signals)
- Impedance matching
- Crosstalk and signal loss
- Electromagnetic interference (EMI) behavior

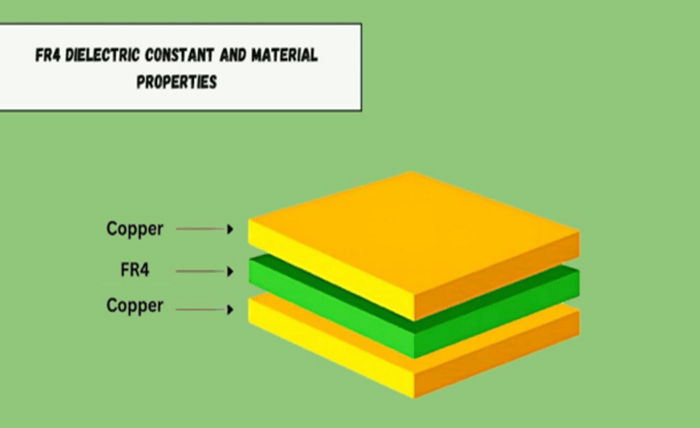

⚙️ FR4 Dielectric Constant – Key Specs:
点击图片可查看完整电子表格
| 📌 Note: Dk varies slightly by manufacturer, resin content, and glass weave style. |
Why FR4 Dielectric Constant Matters in PCBA Design
- Controlled Impedance
FR4’s Dk directly impacts impedance. In high-speed digital designs (e.g., USB 3.0, HDMI, PCIe), maintaining controlled impedance (usually 50Ω or 100Ω differential) is critical to minimize reflection and preserve signal integrity.
- Signal Timing and Delay
A higher Dk leads to slower signal propagation. Designers must account for propagation delay to ensure timing accuracy across multiple signal paths, especially in synchronous systems like microcontrollers, FPGAs, or memory interfaces (e.g., DDR4).
- High-Frequency Performance
As frequency increases, FR4’s dielectric properties become less ideal. Loss tangent (Dissipation Factor, Df) also increases, leading to signal attenuation. For RF or mmWave (>10 GHz), materials like Rogers, Nelco, or Taconic are preferred.
FR4 vs. High-Frequency Materia
点击图片可查看完整电子表格
| For general-purpose and low-frequency digital designs, FR4 is ideal. But for RF designs (antennas, radar, 5G), alternative materials are more suitable. |
Design Considerations for PCBA with FR4
- Layer Stackup – FR4 is ideal for multilayer PCBs due to its mechanical stability.
- Thermal Management – Standard FR4 has a Tg (glass transition temp) of ~130°C. For high-power or lead-free soldering, high-Tg FR4 (~170°C) is recommended.
- Creeping & Crosstalk – Proper trace spacing and ground planes must be considered due to higher Dk.
- Impedance Calculators – Use PCB design tools (like Altium, KiCad, or online calculators) that factor in FR4’s dielectric constant and thickness.
Conclusion
The Printed Circuit Board Assembly process is the heart of electronic product functionality, and the FR4 substrate is the foundation upon which reliable and cost-effective circuits are built. Understanding the dielectric constant of FR4 is essential in modern PCB design, especially in high-speed and high-frequency applications.
While FR4 offers an excellent balance of performance, availability, and affordability, it’s important for engineers to be aware of its limitations in RF and microwave applications. Accurate modeling of FR4’s dielectric properties ensures that your PCB design meets its electrical, thermal, and mechanical requirements.
For general electronic products, FR4 remains a versatile and reliable choice. But as applications evolve into higher frequencies and tighter tolerances, knowledge of dielectric behavior will be key to maintaining signal integrity, EMC performance, and overall reliability.
